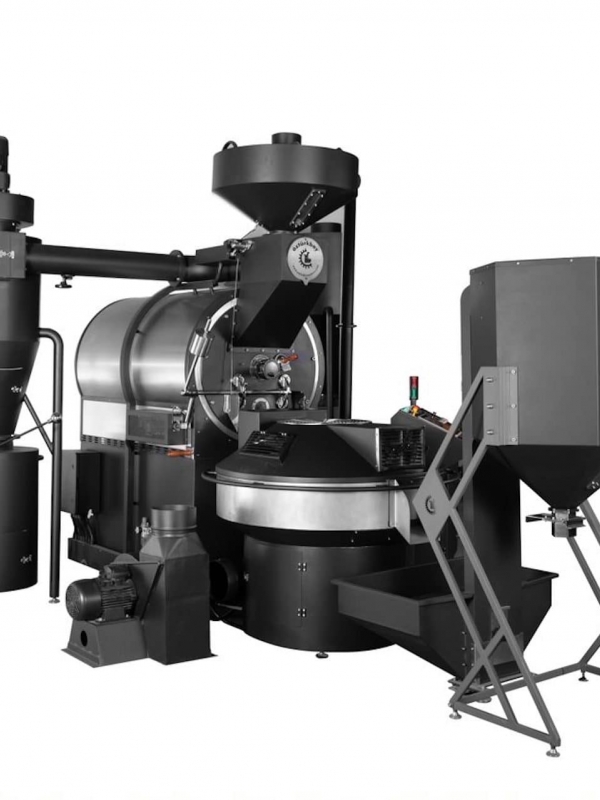

OKS 30
-
Digital Flame Control
-
Double Walled - Cast Iron Roasting Drum
-
Drum Speed Control
-
Fan Speed Control
Product Specifications
| Specifications | Value |
|---|---|
| Model | OKS-30 |
| Drum Capacity | 30 kg. |
| Drum Material | Double Walled |
| Roasting Time | 15 - 25 minute |
| Gas Types | LPG - PROPANE or NG |
| Flame Control | Digital |
| Heating System | Optional: Direct / Indirect |
| Roasting Capacity | 120 kg. |
| Drum Speed Control | Digital |
| Fan Speed Control | Digital |
| Voltage | 220 - 380 V |
| Frequency (Hz) | 50 - 60 Hz |
| Phase | 1 - 3 Phase |
| Total Motor Power | 10,4 KW |
| Dimensions | 220 x 300 x 240 cm. |
| Weight | 1600 Kg |
| Number of Motors | 5 pcs. |
Other Specifications
- Double Walled Roasting Drum
- Hot Air (Indirect) Roasting System with 10 stage
- Pneumatic Green Bean Loader
- Drum & Fan Speed Control
- Timer
- Ready to use Artisan
- Sight glass, Sampling tube and Digital Temperature makes easy coffee roasting process.
- A large cooler with fan guickiy cools the coffee.
- Independent motors for the roasting drum and cooling tank.
- Independent fans for the roasting drum and cooling tank.
- Sound system that announces the end of the roasting process
- 304 quality Stainless Steel Cooling Tray
- Manual Discharge Lever for Drum
- Low noise level
- Easy to use
- High quality
Color Options
See All Colors
See Less Color
Optional Specifications
- PLC Control System
- Afterburner
- Destoner
Security Systems
-
Gas Security System: To shot down all system in condition of any abnormality in gas pressure
-
Emergency Button to turn off all roasting process.
-
Digital Temperature Control the temperature is kept constant at the desired set value. This ensures that your coffee is roasted in the same color and aroma every time.
